Description

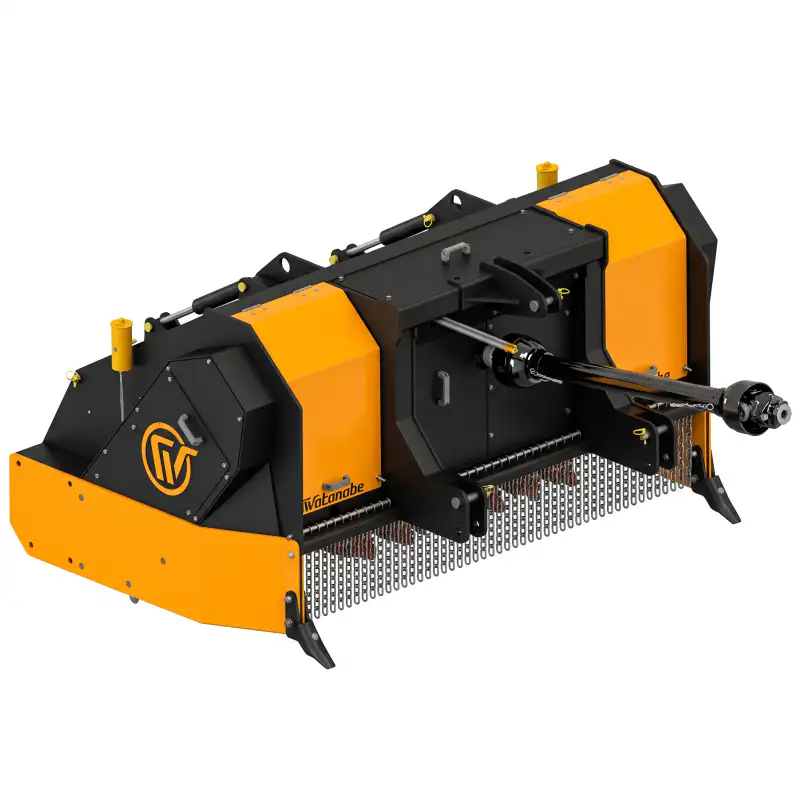

The THOR 2235 stone crusher is a professional-grade, tractor-mounted rock crushing machine engineered for the most demanding land-clearing and soil-preparation applications. With a working width of 2,200 mm and a maximum crushing depth of 350 mm, this heavy-duty machine is built to handle rocks, roots, and stumps with consistent power and reliability. Designed and manufactured to the highest mechanical standards, the THOR 2235 operates via a PTO-driven cardan shaft system compatible with tractors of 250 HP or above — making it one of the most capable PTO stone crushers available on the market today.
Whether you are preparing agricultural land, clearing forested terrain, or processing rocky subsoil before construction, the THOR 2235 delivers the crushing performance and structural durability that professional operators worldwide demand. Its robust Hardox® steel frame, precision-engineered WG3 rotor, and 113 cutting bits ensure uniform material reduction pass after pass.

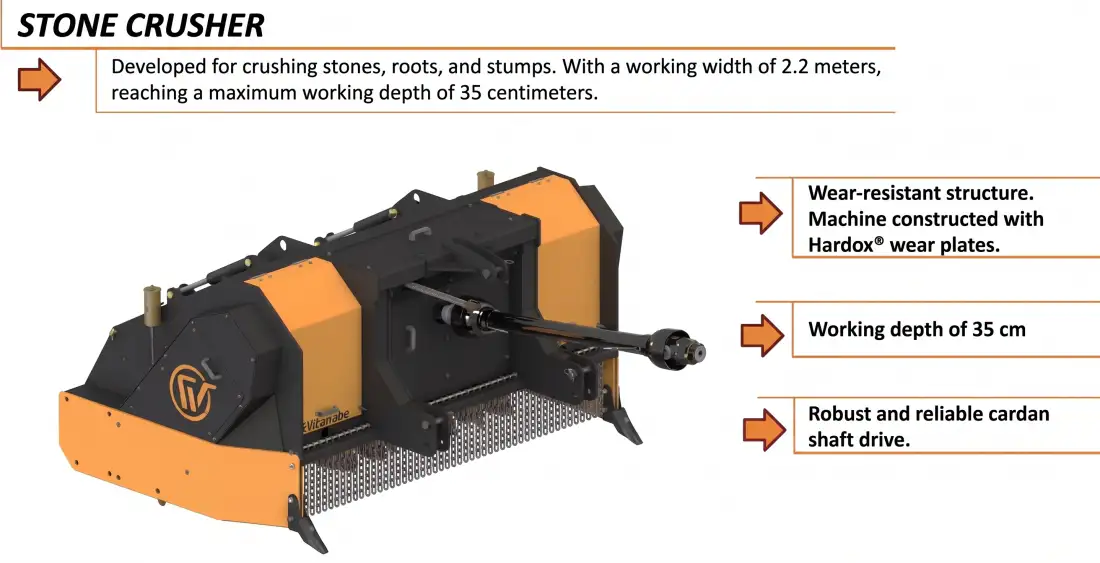

Key Features of the THOR 2235 Rock Crusher
What sets the THOR 2235 apart from standard rock crusher machines is the combination of industrial-grade materials, precision rotor engineering, and a drive system designed for continuous heavy-duty use.
Hardox® Steel Construction
The entire frame and crushing chamber is fabricated using Hardox® wear-resistant steel plates — a benchmark material known for exceptional hardness and impact resistance. This dramatically extends service life and reduces maintenance frequency even in highly abrasive rocky conditions.

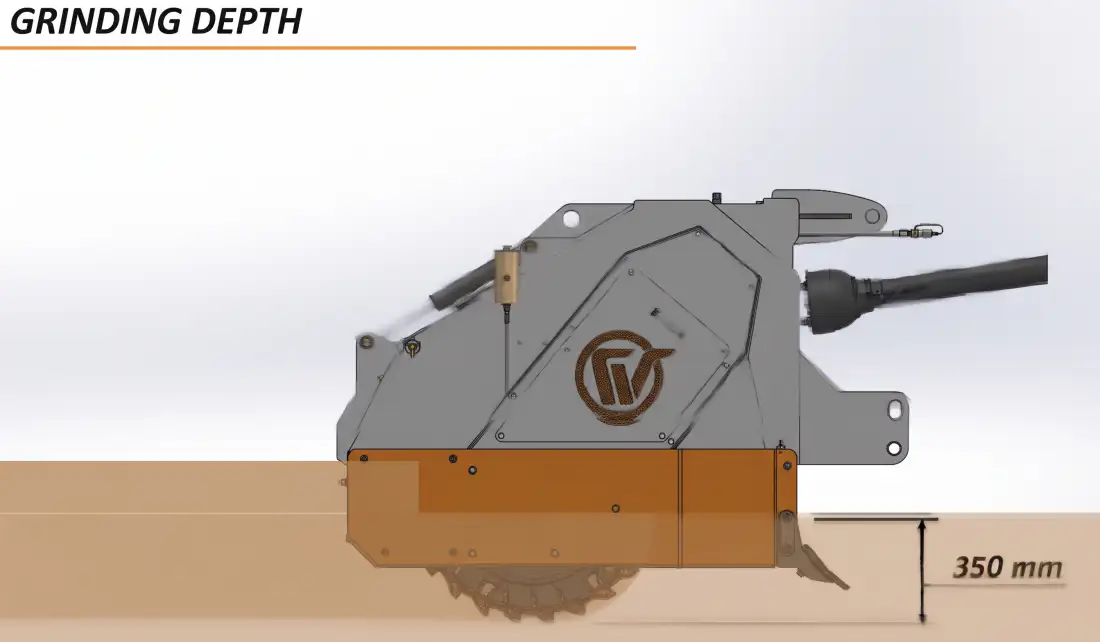

2.2 m Width · 350 mm Depth
With a working width of 2,200 mm and a maximum operating depth of 350 mm, the THOR 2235 covers large surface areas efficiently in a single pass — significantly reducing the number of passes per hectare and lowering operating costs compared to narrower stone crushing machines.
PTO Cardan Shaft Drive
Powered through a standard PTO cardan shaft requiring 250 HP minimum, 1,000 RPM PTO speed, and a 1‑3/8″ 21-spline interface. Broad compatibility with leading tractor brands makes this the preferred stone crusher for tractor use in agricultural and construction environments.

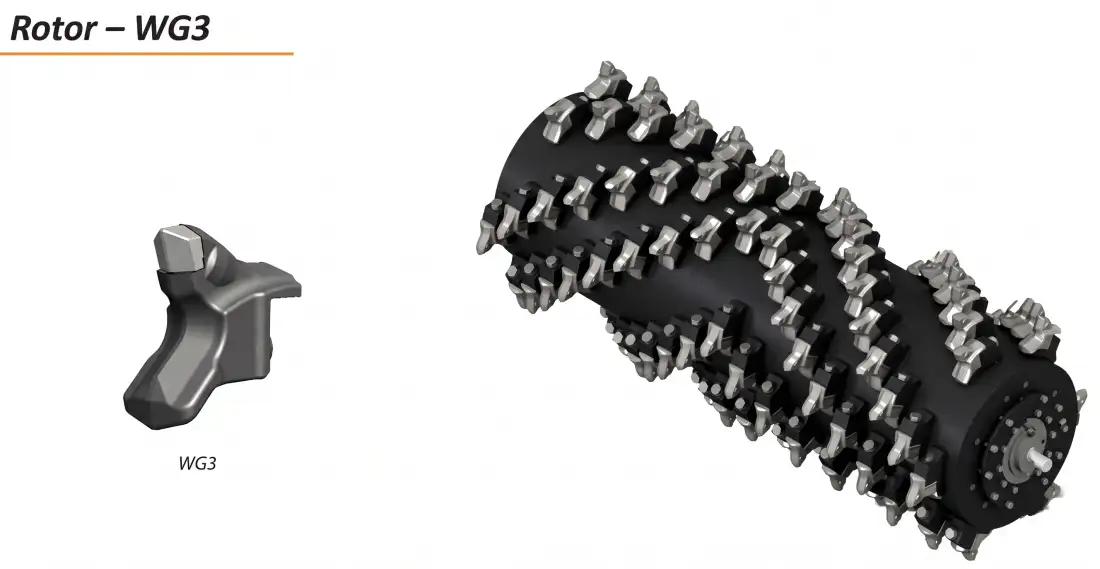

WG3 Rotor – 113 Cutting Bits
The WG3 rotor (885 mm diameter, 113 replaceable bits) features a staggered bit layout that minimises vibration, reduces peak tractor drivetrain loads, and ensures a consistently fine output particle size — critical for soil integration and road base preparation.
Multi-Material Capability
Unlike single-purpose industrial stone crushers, the THOR 2235 handles rocks, tree roots, and stumps simultaneously — making it ideal for olive grove rehabilitation, vineyard preparation, forestry clearing, and rocky scrubland conversion across Mediterranean landscapes.
Safety & Containment Design
The chain curtain, rear cover, and deflector nozzle work together to contain material ejection during operation, directing crushed output safely and protecting the tractor and operator — a critical design consideration for heavy duty rock crusher deployments in mixed-terrain environments.

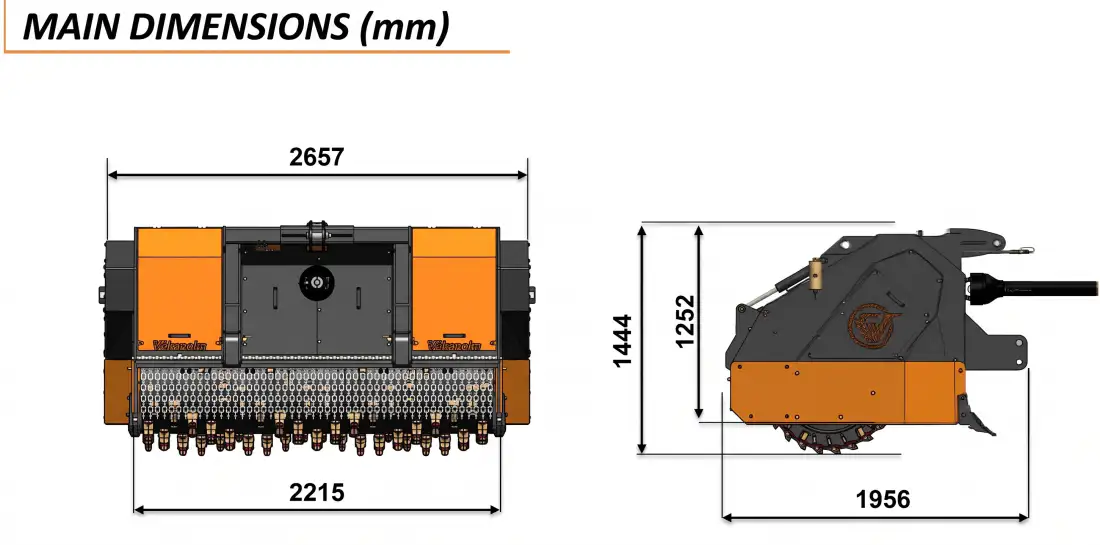

Technical Specifications – THOR 2235 Stone Crushing Machine
The following stone crusher specifications are provided to assist procurement engineers and equipment buyers in verifying compatibility with existing tractor fleets and project requirements.

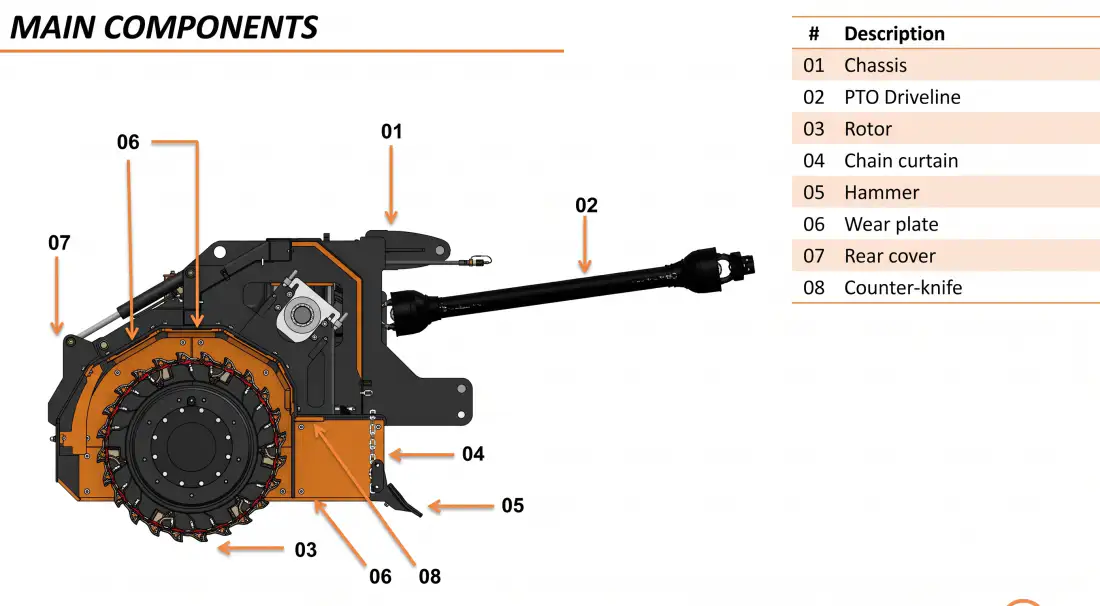

Main Components of the THOR 2235
Every component of the THOR 2235 rock crusher machine is purpose-engineered for high-stress, continuous-duty operation. The diagram and table below detail the primary structural and functional elements of the complete machine assembly.
Applications – Where the THOR 2235 Stone Crusher Performs
The THOR 2235 is a versatile stone crusher for land clearing across a wide range of professional applications. Its ability to simultaneously process rocks, woody roots, and organic debris makes it one of the most productive tractor-mounted implements for soil preparation and terrain management.
🌾 Agricultural Land Preparation
In Italy and across the Mediterranean, the THOR 2235 stone crusher for tractor integration clears and prepares fields for olive groves, vineyards, and citrus orchards in a single efficient pass — eliminating separate rock-picking and root-grinding operations.
🌲 Forestry Clearing & Reforestation
For forestry contractors, the THOR 2235 excels at mulching stumps, roots, and brush while simultaneously crushing embedded surface rocks — accelerating site rehabilitation and reducing labour before replanting.
🏗️ Road Construction & Site Prep
As a reliable heavy duty rock crusher for standard construction tractors, the THOR 2235 processes surface and near-surface rock deposits to 350 mm depth — providing a compactable sub-base without excavation and off-site disposal costs.
⛏️ Quarry Pre-Processing
The THOR 2235 functions as a preliminary rock crushing machine for sale to quarry operators needing an economical first-pass crushing solution before fixed crushing plant installation — reducing overburden clearing costs substantially.
♻️ Environmental & Land Reclamation
Municipal authorities and environmental contractors engaged in scrubland clearance, firebreak creation, and post-wildfire rehabilitation benefit from the THOR 2235’s ability to process diverse terrain — rock, root, dried wood, and compacted soil — in a single operation.
Why Choose Our Stone Crusher – Expertise, Quality, and Global Supply
Selecting the right rock crusher machine manufacturer is as important as selecting the machine itself. Our company, based in Italy, has built a solid reputation as a specialist supplier of agricultural and construction crushing equipment to professional buyers across Europe, the Middle East, Africa, and beyond. We work directly with end-users, agricultural contractors, construction companies, and equipment distributors — providing transparent technical guidance rather than generic sales information.
Every stone crushing machine we supply undergoes pre-shipment inspection and is accompanied by full technical documentation: operator manuals, exploded-parts diagrams, and spare parts lists. Our after-sales support team provides direct technical assistance for installation, commissioning, and routine maintenance. For buyers evaluating stone crusher machine price against total cost of operation, our transparent pricing model and genuine spare parts availability represent a clear long-term advantage.
Operating from Italy — one of Europe’s most demanding agricultural markets — gives us first-hand understanding of the conditions that challenge rock crushing equipment in real-world use. Rocky vineyards in Tuscany, olive groves in Puglia, and scrubland reclamation in Sicily present exactly the kinds of mixed-material, high-abrasion environments for which the THOR 2235 was designed.
For international buyers sourcing a rock crushing machine for sale, we offer competitive export pricing, flexible freight options (EXW, FOB, CIF), and full customs documentation support — ensuring delivery of your industrial stone crusher is straightforward and professionally managed wherever your operation is based.
Ordering Information & Trade Terms
We supply equipment to professional operators, contractors, and distributors worldwide. Please review the following terms before submitting an enquiry so we can respond with the most accurate quotation.
FOB
CIF
DAP
FCA ¹
CFR ¹
CPT ¹
CIP ¹
DDP ¹
¹ Negotiable upon request depending on destination and order volume.
Please note: We are a professional equipment supplier serving contractors, agricultural businesses, and distributors — not a retail outlet. All pricing, lead times, and trade terms are confirmed in writing at the quotation stage. We encourage buyers to contact us with full project or fleet requirements to receive the most competitive terms.
Frequently Asked Questions
Ready to Order the THOR 2235 Stone Crusher?
Contact our team to discuss your application, confirm tractor compatibility, and receive an up-to-date quotation. Volume enquiries and dealer partnership requests are equally welcome. Responses within one business day.
